Main Features- Suite for different kinds of liquid food,such as Yogurt,Milk,Juice
,etc.
- Easy to operate and clean
- Fully automatic sterilization function.
- High Control temperature accuracy
- Good heat exchange effect
- Good energy saving
Specifications| Material handling capacity | 1000L/H | Enter temperature | 45~60ºC | power supply | 380V 50HZ |
| Sterilization temperature | 85~88ºC | | | Steam consumption | About 300KG/h |
| Material sterilization temperature | ≤85~88ºC | Keeping time | 15~30S | Material outlet temperature | 2~15ºC |
| hot water temperature | 87~91ºC | Circulating cooling water requirements | ≥4000L/H | Circulating cooling water temperature | ≤-2ºC |
| Device model | CN0347_1.5_BS | Total installed power | 45KW |
| Material inlet and outlet diameter | ¢25 | | |
| Plate material | SUS316L | Outer tube | SUS304 |
| Sterilization temperature | Fully automatic control, automatic recording | Media inlet diameter | ¢25 |
| control precision | Within ±0.5ºC | compressed air pressure | 0.5Mpa or more |
| Cleaning status | self cleaning | Sterilizer equipment appearance dimensions | 2200*1800*2500 |
| equipment weight | 2000KG | | |

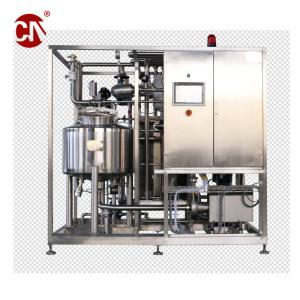

fully automatic plate sterilization unit
(1) Working conditions requirements:
01. Material processing capacity: 1000L/H, static viscosity
<4000cp, solid content 12%~50%, some products contain pulp 2mm,
can be homogenized, pulp fiber
02. Temperature combination: Technology: Ice cream milk.
03. Sterilization process parameters:
Feeding 45degree~60degree--homogenization temperature
70~80degree---sterilization temperature 85~88degree--exit
temperature 2~15degree, heat preservation 15s~30s--discharge
40degree.
The entire process is fully automatically controlled.
04. Tower water entering temperature ≤35degree, flow rate ≥4000L/H;
ice water entering temperature: ≤-2degree Cooling water
consumption: ≥4000L/H
05. Compressed air working pressure: ≥0.6Mpa, after water and oil
removal.
06.Steam pressure≥3bar
(2) Design requirements:
01. Sterilization temperature: freely set by touch screen panel and
automatically controlled.
02.Outlet temperature: 2~15degree
03. Keeping temperature and time: 15s~30s
04. Hot water working temperature: 88~91degree
05. Equipped with a fully automatic alarm and fault handling
system, which can effectively eliminate the output of substandard
products.
06. Realize automatic control, touch screen human-machine
interface, full Chinese/English display operating system, real-time
display and alarm, real-time display and alarm of valves and pumps,
human-machine interface to realize formula management, real-time
recording of production and CIP process parameter operation events
and error alarm.
07. Fully automatic conversion of pre-sterilization, production and
CIP processes, fully automatic PLC control.
08. It has its own CIP cleaning system, which can automatically
clean the CIP in situ at any time and does not rely on the startup
of the CIP system in the workshop main line.
09. Maintenance is simple and convenient without any bulky tools.
The manufacturing materials fully comply with GMP standards for
food factories.
10. Indirect heating, automatic control of hot water system,
precise flow and temperature control,
